Sticking to my lighting theme

I noticed that some of the lights went out on the Escalade’s radio. I can’t believe they used light bulbs instead of LEDs… After searching youtube and ebay I was inspired to perform some surgery! Thankfully it was a success and the patient is back to 100%

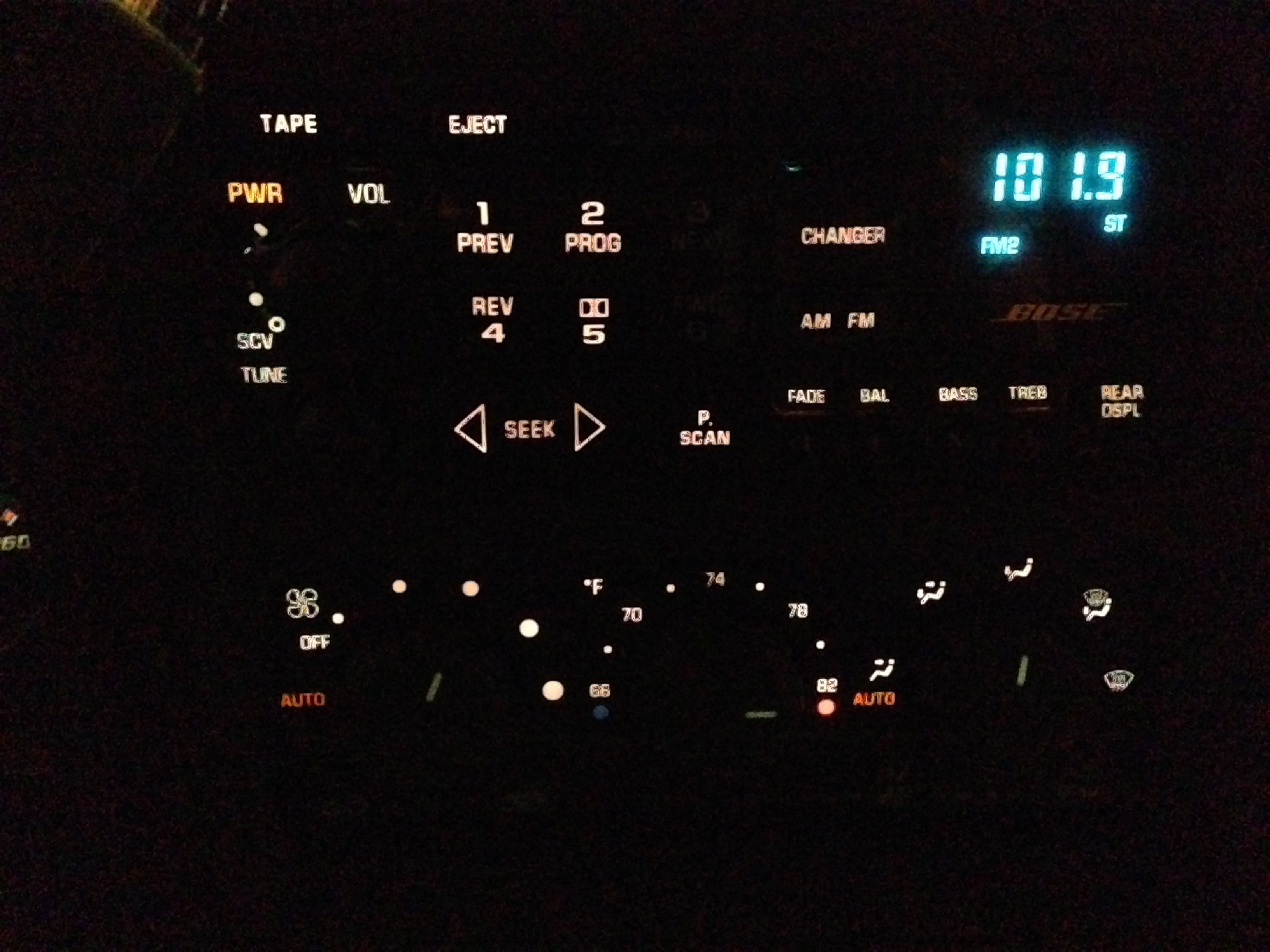

The 3 and 6 were burnt out.

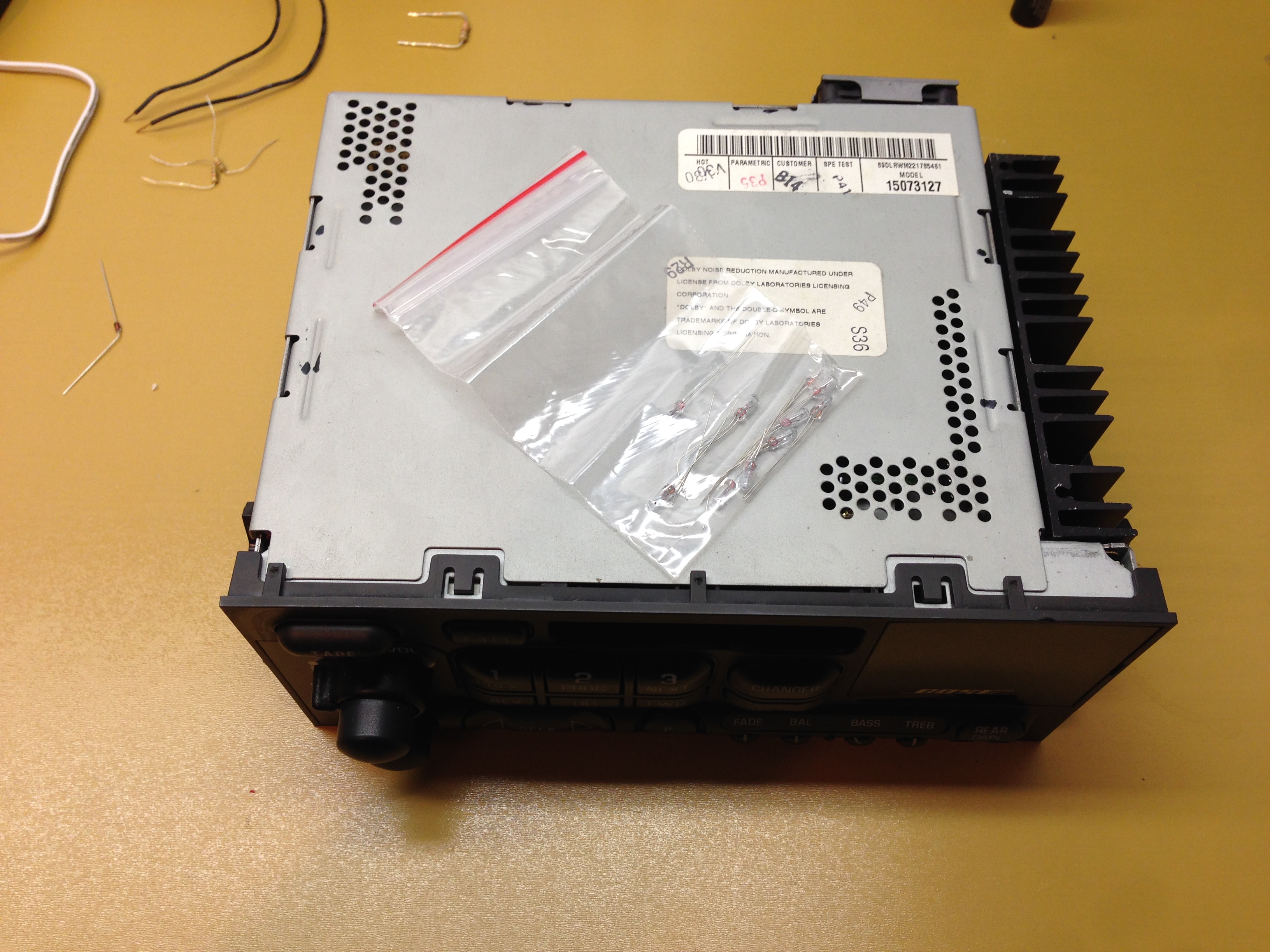

Here is the radio and pack of new light bulbs.

The cover has to be removed in order to disconnect two cables that are attached to the front panel.

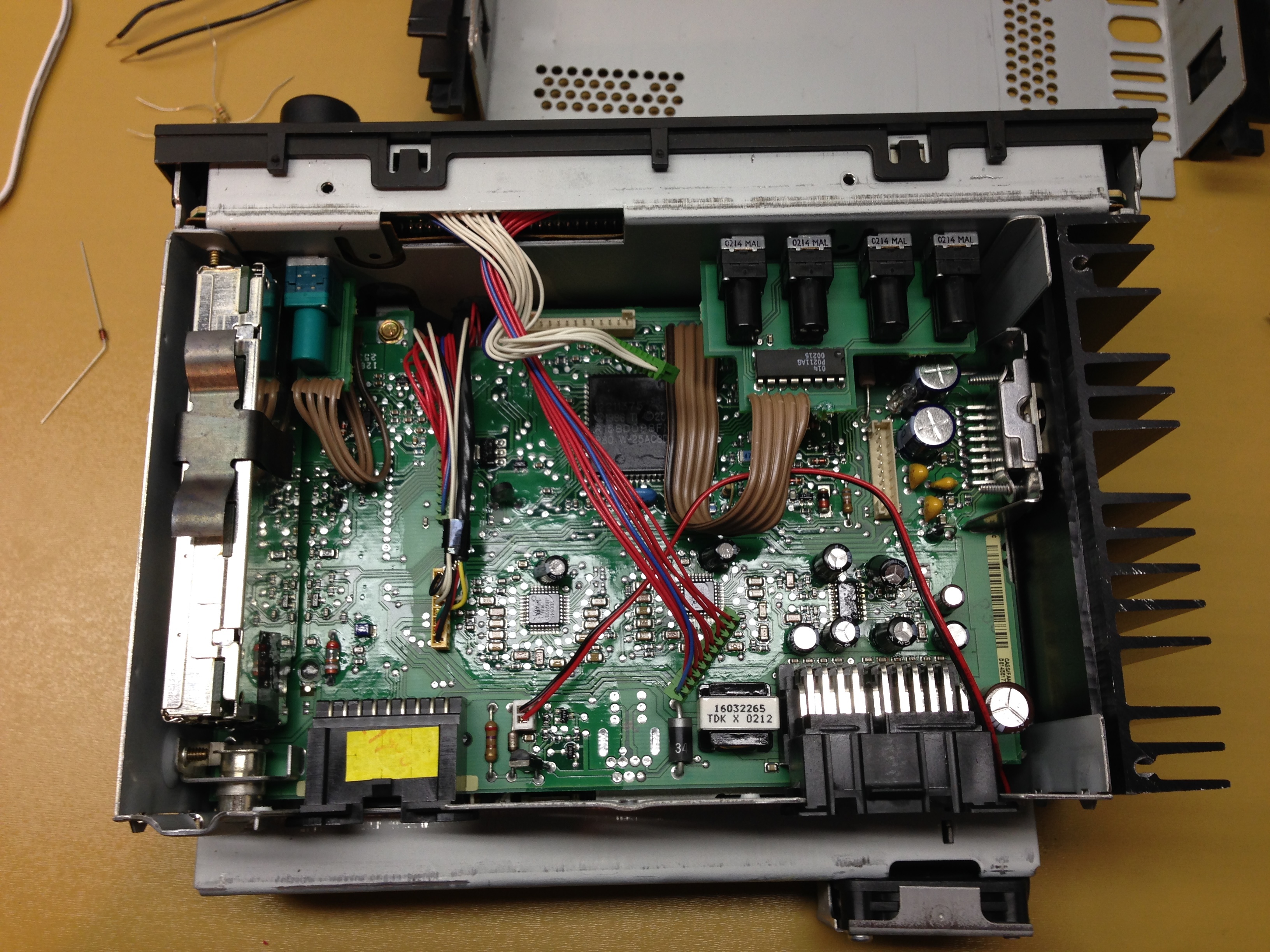

The front portion of the radio removed.

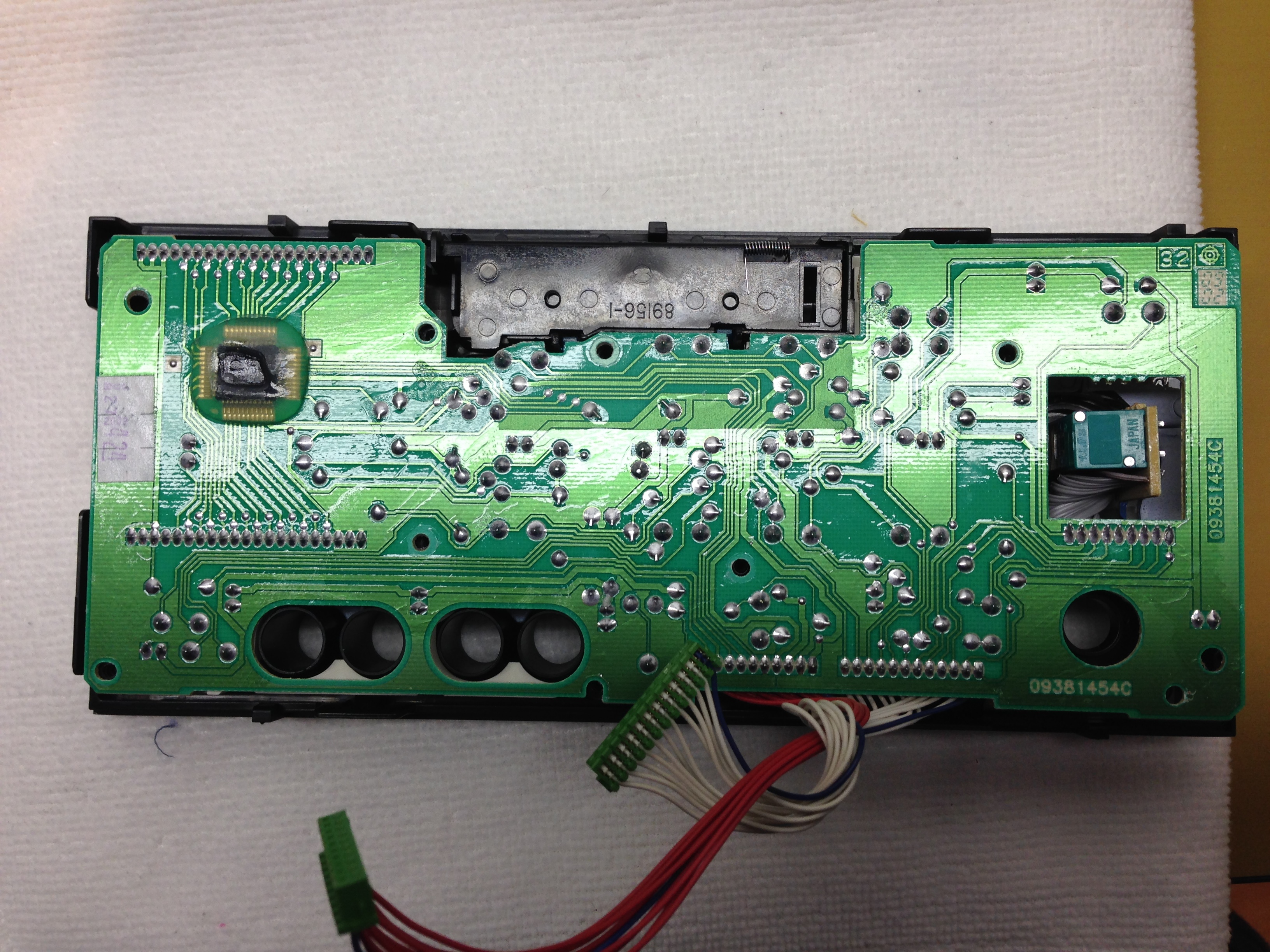

Here is the rear of the radios front cover and the circuit board.

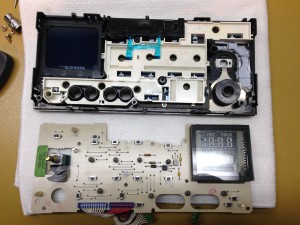

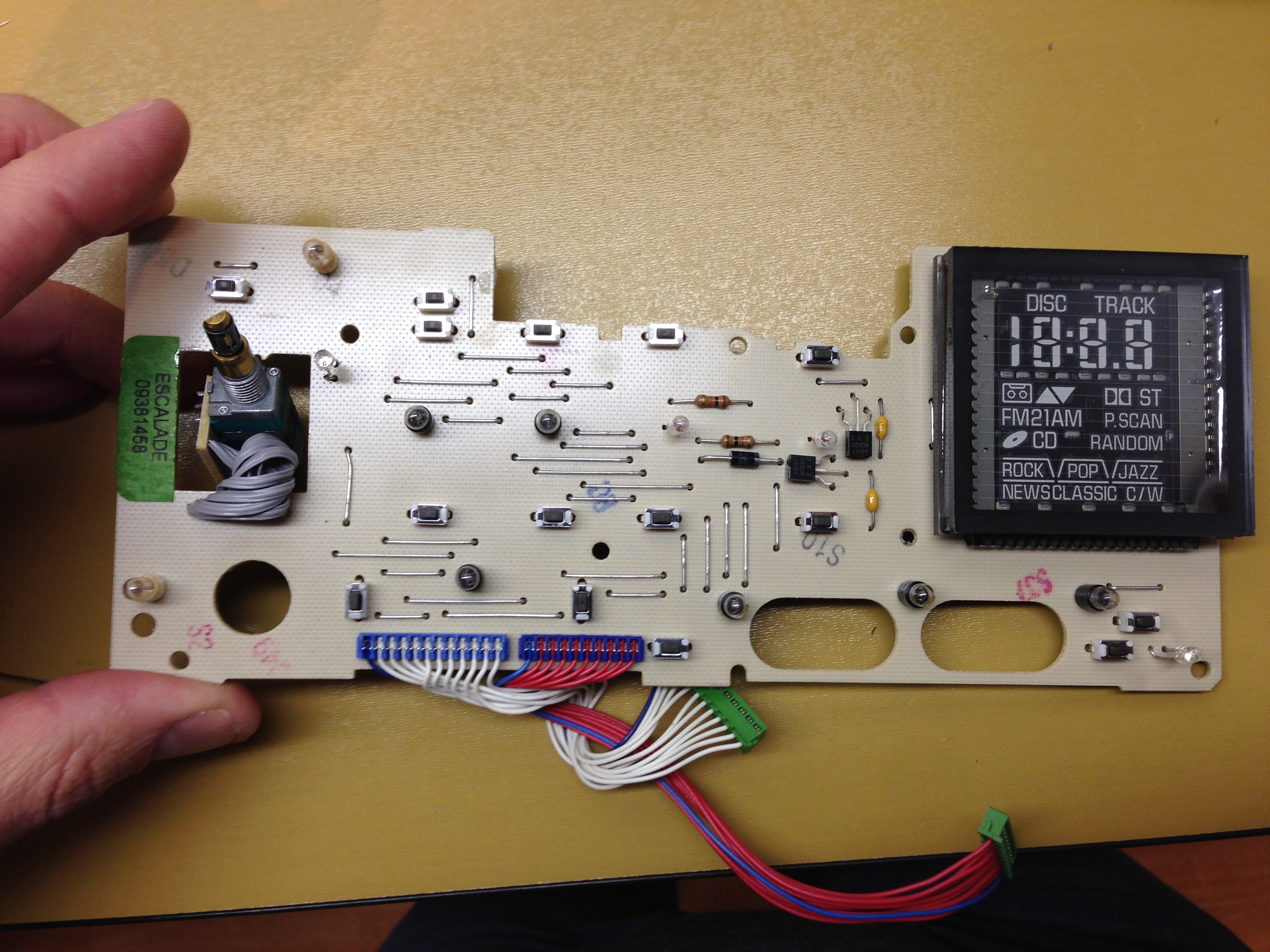

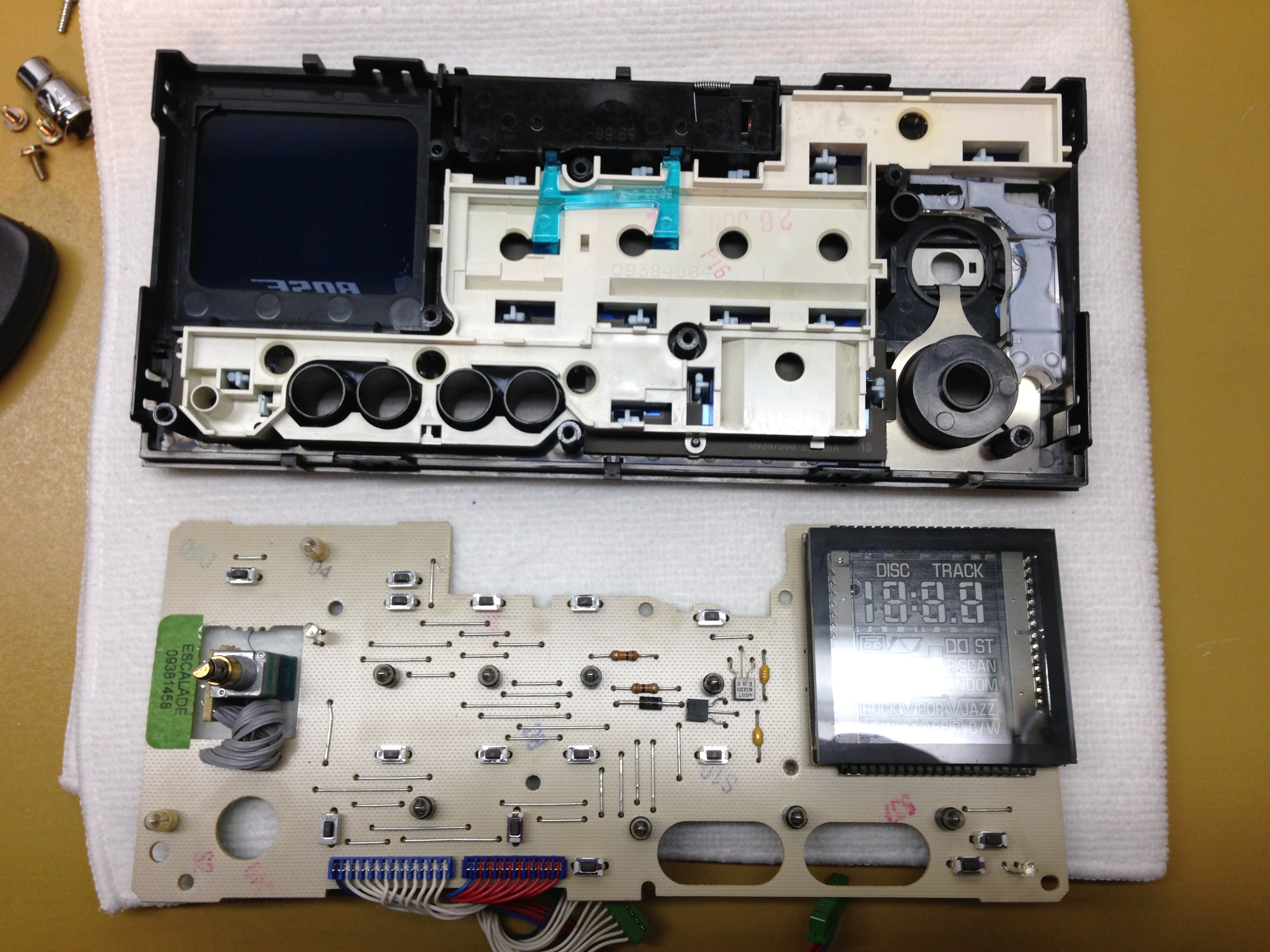

The circuit board removed from the front cover.

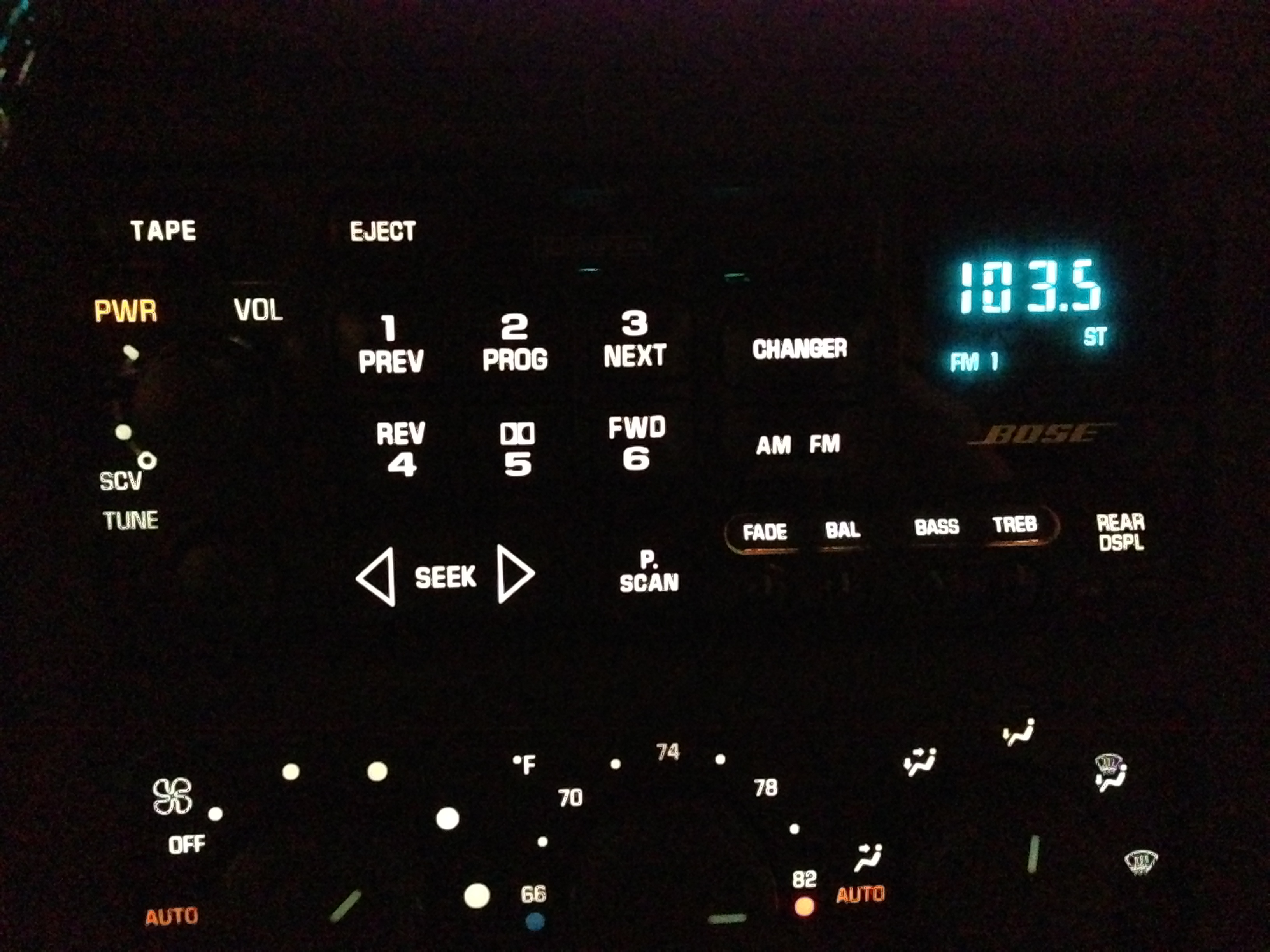

All better :).
